TRANSER GEAR PUMPS

“AKSHAR” is a Leading Manufacturer and Supplier of Stainless-Steel Gear Pump and SS Rotary Gear Pump in India. it is widely used for transfer of Corrosive Chemicals & Viscous Liquids.

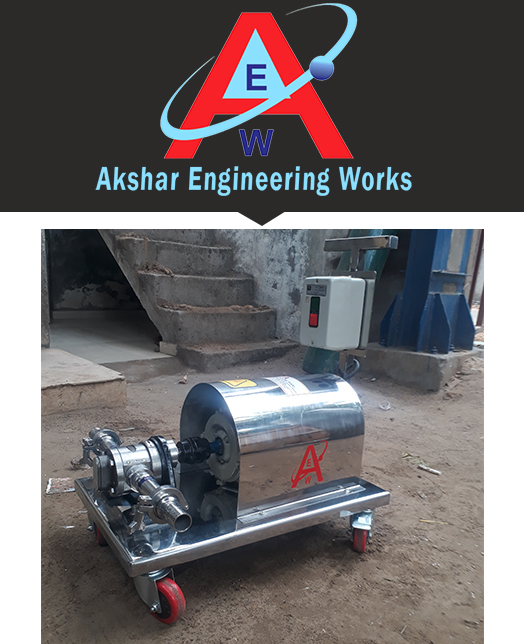

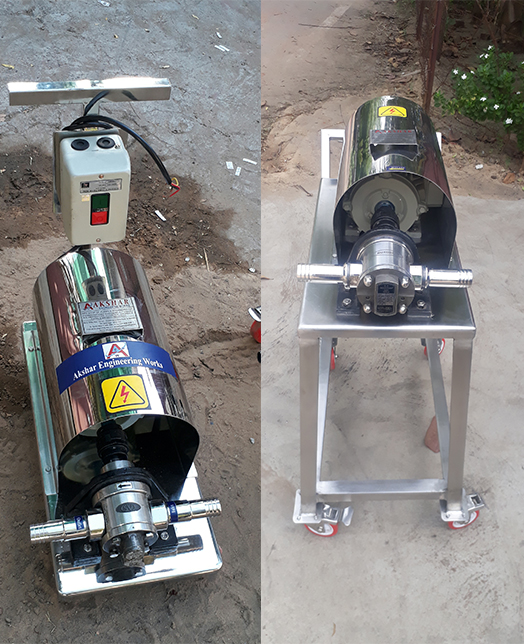

SS Rotary Gear Pump, Stainless Steel Gear Pump, which is self-priming, foot mounting type positive displacement rotary gear pump. Pump having all Stainless-Steel SS 316 in three-piece construction with investment cast.

Due to three-piece construction, it can be easily cleanable and maintainable that is why it is universally used in all kinds of food industries. These pumps have SS-316 Gear and shaft that are nitrated to give long life and trouble-free performance. The shaft is supported on self lubricating type Teflon coated DU Bushes and the sealing is done with Teflon based “GFO” pack sealant which gives zero leakage.

The right-angle mounting brackets facilitates foot mounting of the pump on base plate with Electric Motor of appropriate ratings. These pumps have sturdy design and construction for long trouble-free service.

The suction and delivery connection are available in 1/4" to 2½" size. These pumps can be operated up to pressure of 10 kg/cm² with 8.33 LPM to 300 LPM flow capacity and has suction lift of 1m to 5m at rated speed of 1440 RPM. These pumps are designed up to maximum Viscosity to 1,00,000 SSU and maximum temperature up to 200ºc

    • SALIENT FEATURES

    • Construction is in three pieces so easily cleanable and maintainable.
    • PTFE coated DU bush for smooth running and dry bearing condition.
    • Self-priming pump
    • Single helical gear design.
    • Optionally available in double helical gear design.
    • Bi-direction positive displacement pump.
    • Corrosion prevents pump.

    APPLICATION

    • Food product like Ghee, Butter, Pulp, Vegetable sauce.
    • Pharmaceutical industries.
    • Cosmetic industries.
    • Dyes and Resins.
    • Chemical industries for corrosive viscose chemical.
    • Dyeing and Printing house.
    • Special chemical and Acid industries.

    MATERIAL OF CONSTRUCTION


    Part Material for AKSHAR GEAR PUMP
    Pump Body CF8M - SS 316
    Front Cover CF8M - SS 316
    Back Cover CF8M - SS 316
    Gland Cover CF8M - SS 316
    Packing Teflon Sheet
    Sealing "GFO" Pack Teflon/ Mech. Seal
    Bush Bearings Teflon Coated "DU"
    Mounting Bracket C.I.Gr.-20 IS 210
    Dom Nut AISI SS 316
    Rotor/Stator Shaft AISI SS 316
    R.H. & L.H. Gear AISI SS 316
    Key for Coupling SS 304

    TECHNICAL SPECIFICATION


    MODEL SUCTION & DELIVERY SIZE CAPACITY AT 1440 RPM
    ASSGP-025 1/4" x 1/4" LPM : 8
    US GPM : 2.1
    M³/Hr. : 0.50
    ASSRGP-040 3/8" x 3/8" 15 3.9 0.9
    ASSRGP-050 1/2" x 1/2" 25.00 6.6 1.50
    ASSRGP-075 3/4 x 3/4" 30.00 7.9 1.80
    ASSRGP-100 1" x 1" 50.00 13.2 3.00
    ASSRGP-125 1¼" x 1¼" 100.0 26.4 6.00
    ASSRGP-150 1½" x 1½" 125.0 33.0 7.50
    ASSRGP-200 2" x 2" 200.0 52.8 12.00
    ASSRGP-250 2½" x 2½" 300.0 79.25 18.00
