AUTOMATIC STICKER LABELING MACHINE

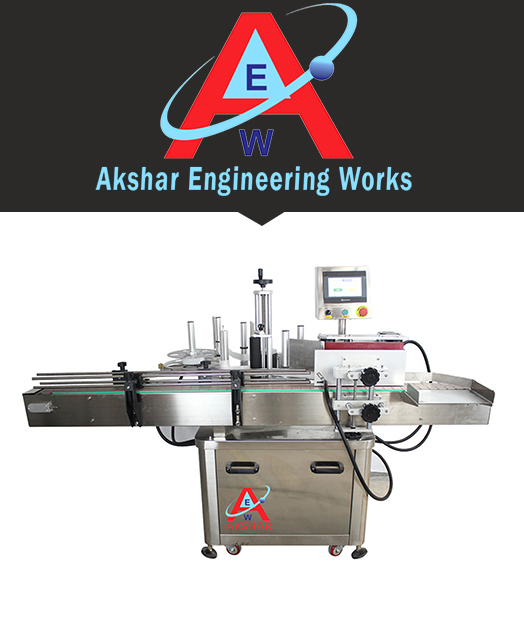

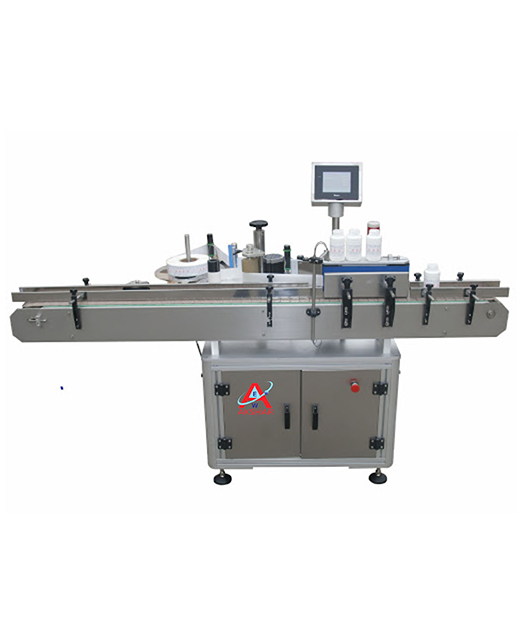

“AKSHAR” Labeling Machine Model AASLM-250 is an automatic vertical sticker labelling machine is used for partial wrap around labelling on different sized round containers with high speeds. This is a fully automated labeling machine that is manufactured with high-grade stainless steel and has a matte finish.

The automatic machine is integrated with a PLC board that facilitates higher production speed. The labelling machine is equipped with two label roll mounting devices and has very less change over parts, thus ensuring very low downtimes for change over and maintenance. The machine capable of batch labelling as well and is designed in compliance with current good manufacturing practices (cGMP) - an international standard for machinery design. The machine has various optional attachments that can be used to increase the functionality.

SALIENT FEATURES

  • Rigid MS structure with elegantly matt finished SS cladding.
  • Higher production speed.
  • PLC based operation having security package and counter.
  • Product data storage facility.
  • Very accurate label placement
  • Requires very less change over parts
  • Very less down time for change over
  • Suitable for Glass, Pet, HDPE all kind of surfaces.
  • Very compact design of applicator made of aluminum.
  • Various Non-Contact batch code printers can be installed. (optional)
  • Bar code detection, missing label detection & misprinting detection can be installed with rejection. (optional)
  • Equipped with two label roll mounting devices to minimize down time
  • GMP design with complete SS structure.
  • TECHNICAL SPECIFICATIONS


    Model NASAL - 250
    Output / Hour* 6,000 - 13,500 Nos.
    Direction of Movement Left to Right
    Electrical Specification** Conveyor Motor 0.50 HP / 415 Volts / 50 Hz
    Pressing device motor 0.50 HP / 415 Volts / 50 Hz
    Stepping Motor (Servo Motor) 0.4 KW / 3000 RPM
    Feed Worm Motor 0.50 HP / 415 Volts / 50 Hz
    Height of Conveyor** 860 mm ± 50 mm

    INPUT SPECIFICATIONS


    Label Specification Length** 30 mm to 180 mm
    Width ** 16 mm to 100 mm
    Roll Diameter Max. 300 mm X ID 75 mm
    Space between two label 3 mm in anti clock wise
    Container Size** Round Shape ∅ 20 mm to ∅ 60 mm***
    Respective height : 40 mm to 120 mm***
    * Depending on the size of container & label size.
    ** Can be customized.

    UTILITY REQUIREMENT


    Electrical supply 3 Phase + Neutral + Earthing
    Electrical Load 1.45 KW
    Air Pressure: Minimum 2 CFM @ 6 kg for printer or rejection device if such installed
