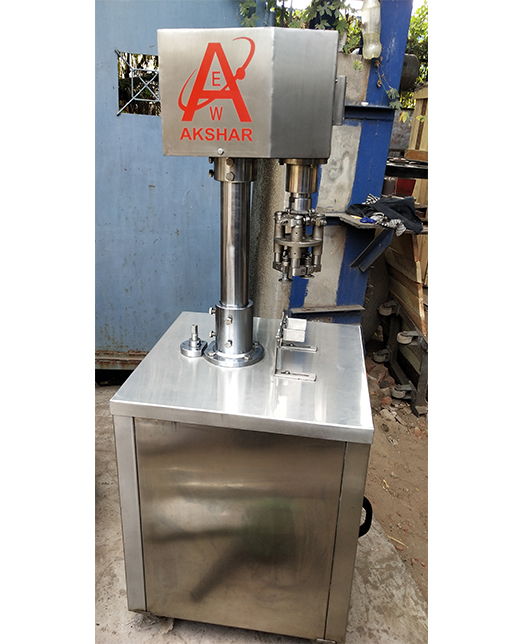

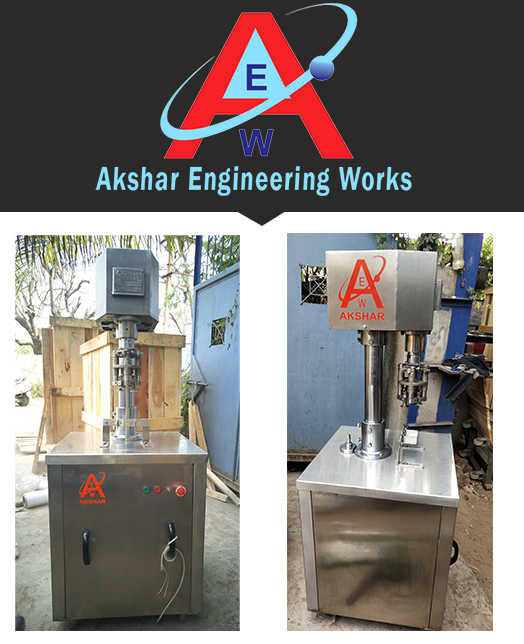

SEMI AUTOMATIC SINGLE HEAD BOTTLE CAPPING MACHINE

“AKSHAR” Semi-Automatic cap sealing machine is built on a sturdy welded MS frame that is completely closed within a stainless-steel sheet and doors that are provided to ease the function of the machine. The product is motorized by blending a rotating thread & sealing roller to carry forth the sealing of the ROPP caps

Feeding and Unloading the container is done manually by the positioning body and the neck of the container below the rotating head where the sealing head performs the operation of threading & sealing.

SALIENT FEATURES

  • The unit is made compact & versatile.
  • S.S. elegantly matt finished body.
  • Built in front control panel.
  • Quick setting
  • Motorized head movement.
  • No change parts require for different container diameter.
  • Low noise level, low power consumptions.
  • Adjustable bottle height gauge for easy and quick setting.
  • SS cladding or hard chrome platting of all exposed parts to ensure long life and resistance against corrosion.
  • Sealing pressure can be varied to suit different gauges and size of caps

    • TECHNICAL SPECIFICATIONS


    Model ASRCM - 40
    Output / Hour* 1000 to 2400 Containers
    No. of sealing head 1
    Electrical Motor** 1 HP / 440 Volts / 3 Phase / 50 Hz (Four wire) For Main Machine
    Change parts required Cap Die if cap diameter change.

    INPUT SPECIFICATIONS


    ROPP Cap Specification Diameter** ∅ 19 mm to ∅ 38 mm***
    Height** 15 mm to 18.3 mm
    Container Size** Round Shape
    (A) ∅ 20 mm to ∅ 60 mm***
    (B) Respective Height : 58 mm to 120 mm
    Flat / Square
    (A) Length : 30mm to 70 mm
    (B) Width : 20 mm to 50 mm
    (C) Height : 58mm to 120mm
    * Depends on bottle size, cap size and type of cap.
    ** Can be customized.
    *** With the help of applicable change parts.

    UTILITY REQUIREMENT


    Electrical supply 3 Phase + Neutral + Earthing
    Electrical Load 2 Kw
    Air Consumption 0.75 KW
