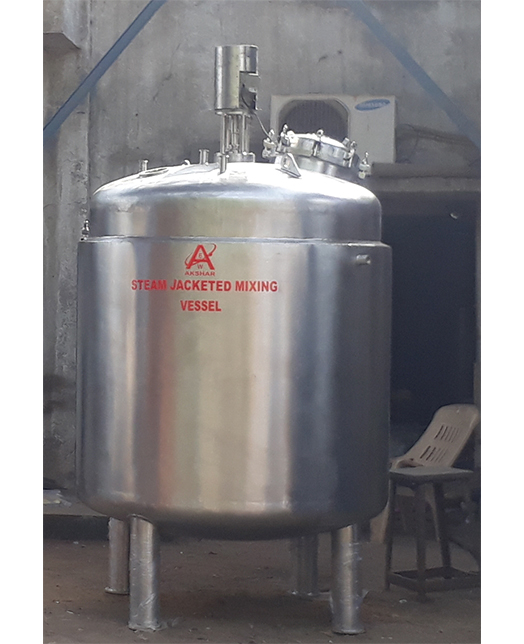

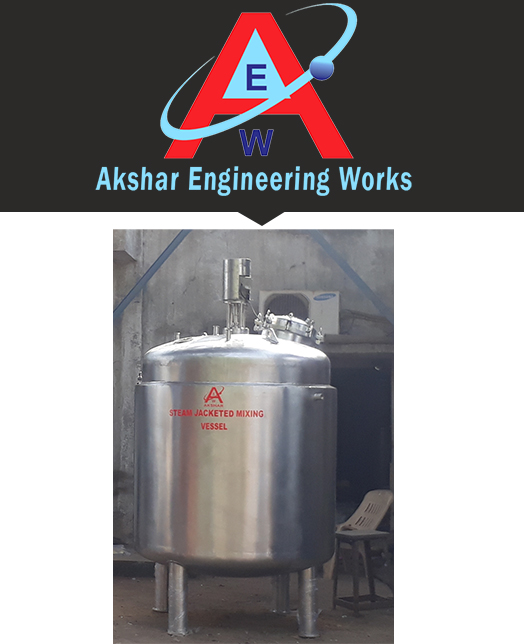

LIQUID JACKETED MIXING VESSEL

“AKSHAR” mixing vessels are designed and crafted to handle the unique demands of a variety of products. We offer several types of impellers including completely customized designs to suit incredibly unique applications and mixing solutions. We will engineer and design to your specifications and analyze your process to mix your liquid products more rapidly and accurately.

Features

  • 304/304L and 316/316L stainless steel construction, including all non-product contact and structural steel.
  • Custom-designed mixer and seal.
  • Clean-in-place spray balls designed specifically to clean your custom mix vessel.
  • 14” to 24” manway access.
  • ASME code stamped vessel.

    • OPTIONAL FEATURES

    • A variety of internal and external material and weld finishes are available from bead blast up to mirror-finish electro polish.
    • Variety of heat transfer types including
    • Dimple in 14 or 12 gauge
    • Halfpipe in sizes 2”, 3” and 4” available with full through weld design for thermal cycling.
    • Internal pipe coils and heated baffles.
    • Manways with swing bolts, spring assist lift and safety interlock proximity switch to safely shut down your mixer when the door is opened.
    • Mixer can be supplied by you but installed by Paul Mueller Company at our shop or at your project site.
    • Variety of impellers, 4 blade turbines HP4, high efficiency 3 blade impeller HE3, flat blade disk turbines, anchor style, sweeps, scrapes, helical ribbon; includes dual motion, vertical, or horizontal designs.
    • Nozzles to suit your process
    • Insulated vessel with fully welded 304 stainless steel outer sheathing
    • Sparge system.
