Sterile Manufacturing Vessel is made as per WHO & USFDA standards to manufacture sterile solutions. This is a completely closed vessel with agitator mounted on top dome. This vessel available with different accessories for different applications i.e., standard stirrer/magnetic stirrer as required by the customers.

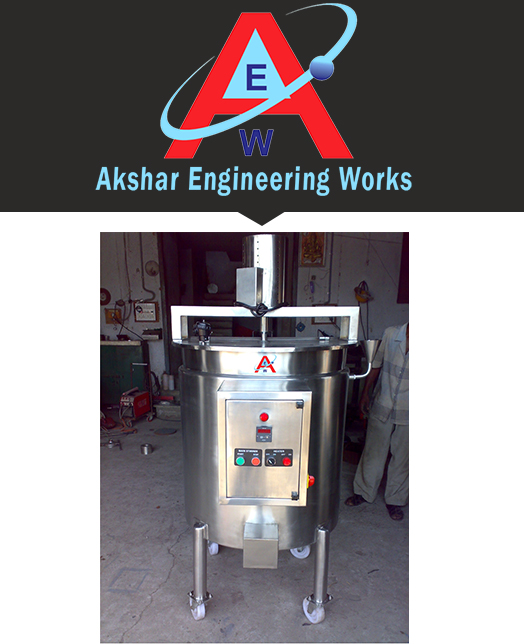

Jacketed Mixing Vessel (double jacketed vessel) including jacketed steam boiler is uses for mixing liquid and slightly solid materials. Jacketed Mixer assembly equipped with series of paddle types blades, pitched or flat blade of appropriate shape. In Mixer two consecutive blades move in opposite direction which creates laminar thinning of the material and facilitates uniform mixing. Paddle type blades mounted on scrapping arms and welded to hollow shaft have independent drive. Bottom support to the shaft called pilot provided for firmness of shaft during rotations. Paddles mounted on internal shaft creates relative movement of the material. For discharge of material different types of valves can be offered as per user requirements.
* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.
|Capacity||100 Liters to 20000 Liters|
|Power Supply||0.5 H. P. to 75 H. P|
|Power Voltage||440 volts, 3 phase, 50 hertz|
|Gearbox||Helical type / similar|
|Stirrer Type||Pitch Type Stirrer|
|Stirrer MOC||Stainless Steel 304/316/316L|
|Stirrer RPM||150 RPM adjustable through VFD|
|Stirrer Mounting Orientation||Top Mounted|
|No. of blades||Two / Three / Four|
|Shaft Diameter||Suitable Diameter|
