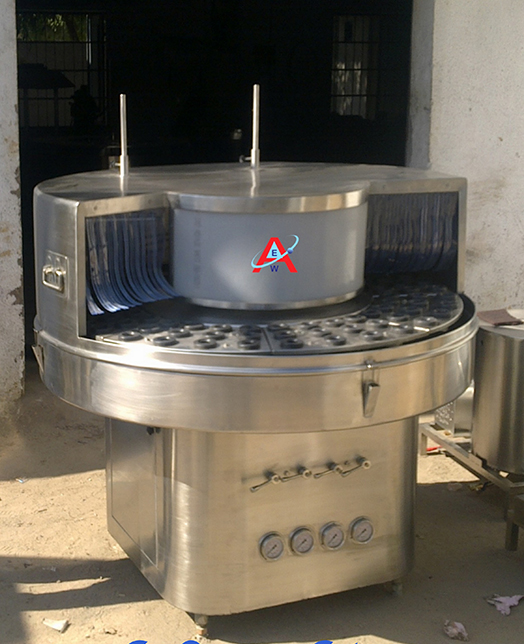

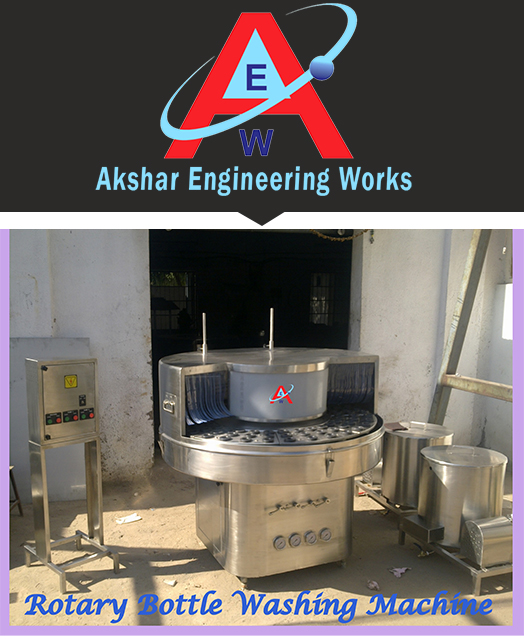

SEMI AUTOMATIC ROTARY BOTTLE WASHING MACHINE 96 JETS

AKSHAR Rotary bottle machinery operates with the GENEVA mechanism and meets the CGMP requirements of glass and plastic bottles. With an elegant design and compact arrangement, our Rotary Bottle Washing Machine is highly efficient and multi-featured that provides ease of operation.

The machine also requires manual loading and unloading of bottles that are cleaned by the spraying showers over a series of operations. These bottles can be loaded in an inverted position inside the specially designed cup-shaped holders. To enable regular and timely washing of bottles, spraying showers and solenoid valves are provided. They ensure water-saving along with flexible adjustment of the washing media to suit individual requirements.

SALIENT FEATURES

  • Extremely simple and user friendly design based on Geneva Mechanism
  • All contact parts are made of SS 316
  • Four inner (Included one air wash) & one outer wash
  • Sequence washes according to customer's choice
  • Stationary nozzles ensure contamination free water cycles
  • Easy loading and unloading
  • Individual solenoid valve for each washing sequence
  • Higher capacity centrifugal pumps to wash bigger bottles
  • The stationary nozzles avoid chipping of bottlenecks
  • Pumps and tanks are mounted on portable stands offering easy maintenance
  • Bottle guide system especially for lightweight bottle
  • Separate control panel to avoid any short circuit due to spraying of water
  • S.S. Glycerin filled pressure gauges
  • TECHNICAL SPECIFICATIONS


    Model ARWM-96
    Output / Hour* 4300 to 7500
    No. of Container Holder 96
    Direction of Machine Clockwise
    Electric Specifications Main Motor 0.5 HP / 415 Volts / 50 Hz
    Pump (2 Nos.) 1 HP / 415 Volts / 50 Hz X 2 Nos.
    Electric Heaters 3 kW.
    Tank Capacity 75 Ltrs. S.S. 316 (2 Nos.)
    Wash Cycle 4 Inner + 1 Outer
    Working Height 860 mm ± 50 mm
    Change parts required (A) Neck Dia.: Neck holding pocket
    (B) Flat Containers : Special type of cups

    INPUT SPECIFICATIONS


    Container Size Round Length : 30 mm to 100mm Length : 30 mm to 80mm
    Respective Height : 50 mm to 270 mm
    Neck Dia. : ∅ 20 mm to ∅ 28 mm
    Flat / Square Length : 30 mm to 100mm Length : 30 mm to 80mm
    Width : 10 mm to 50 mm
    Height : 58 mm to 190 mm

    CONSUMPTION OF WATER


    First Wash 200 Ltrs./Hr 230 Ltrs./Hr.
    Second Wash No consumption as such, water loss during re-circulation shall be compensated
    Third Wash 200 Ltrs./Hr. 230 Ltrs./Hr.
    Fourth Wash No consumption as such, water loss during re-circulation shall be compensated OR Air Wash
    Outside Wash 200 Ltrs./Hr. 230 Ltrs./Hr.

    UTILITY REQUIREMENT


    Electric Supply 3 Phase + Neutral + Earthing
    Electric Load 5 kW
    Air Consumption 5 CFM @ 6 Kg
