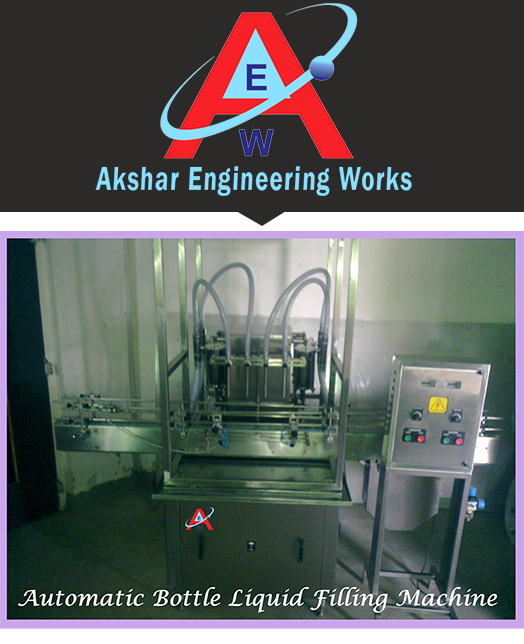

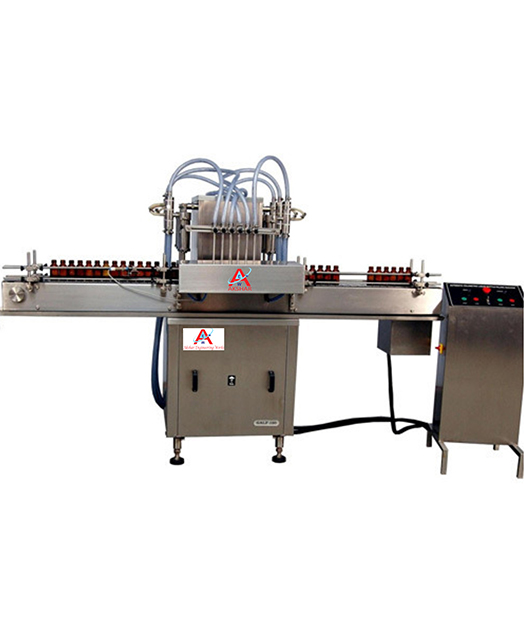

AUTOMATIC FOUR HEAD BOTTLE FILLING MACHINE

AKSHAR Automatic Volumetric Liquid Bottle Filling Machine works on volumetric principle with diving nozzles. The unit is made compact, versatile & enclosed in stainless steel elegantly matt finished body, consist of S.S. sail conveyor, reciprocating nozzle with self-centering devices & S.S. syringe. No container no filling system arrangement is standard feature of the machine.

The main drive of the machine and conveyor drive consist of A/c motor with A/C frequency drive.

OPERATIONS

Containers moving on S.S. slat conveyor, feed below the filling nozzles through a twin pusher system. The twin pusher system & reciprocating nozzles are precisely matched for centering of container below Nozzles, It avoid spoilage of liquid on container, to minimize foaming adjustable nozzles will reciprocate according to filling doze, nozzle will go up words slowly from bottom level of bottle towards neck during filling.

The dosing black with a hexagonal bolt flitted below syringes. That means different fill size can be easily set.

    • SALIENT FEATURES

    • ± 1 % Filling accuracy on single dose.
    • No Bottle No filling system.
    • Rigid vibration free construction for trouble free performance
    • SS elegantly matt finished body
    • Elegant and easy access control panel makes it user friendly
    • Minimum changeover time from one size to another container or fill size
    • Self-lubricating UHMW-PE guide profile for S.S. slat chain provides low friction & allows smooth and noiseless conveying.
    • Drain tray around machine platform.
    • Drip tray under the conveyor
    • Pneumatic bottle stopping arrangement.
    • Synchronized two nos. A/C drives for main motor & conveyor belt.
    • Pneumatic diving mechanism.
    • Pre/post nitrogen flushing (optional).
    • In-built pre-inspection and chain washing (optional).

    TECHNICAL SPECIFICATIONS


    Model AABFM-100
    Output / Hour* 2400 to 5500
    Direction of Movement Left to Right
    Number of head/Syringe 4 Nos.
    Fill Size*** 5 ml to 1000 ml
    Electric Specification** Main Machine 1 HP / 415 Volts / 50 Hz. (1.5 HP for 1000 ml)
    Conveyor 0.5 HP / 415 Volts / 50 Hz.
    Height of Conveyor 860 mm ± 50 mm Adjustable.
    Change parts required (A) Syringes, (B) Nozzle, (C) Inlet & outlet hose pipe

    INPUT SPECIFICATIONS


    Container Neck Diameter** Minimum 22 mm***
    Container Size Round Shape (A) ∅ 28 mm to ∅ 60 mm***
    (B) 60 mm to 120 mm***(Height option for another bottle height available)
    Flat / Square (B) 20 mm to 50 mm (Width)***
    (C) 58 mm X 120 mm*** (Height option for another bottle height available)
    * Depends on Container size, fill size, Neck diameter of container, and nature of liquid etc.
    ** Can be customized.
    *** With help of change parts.

    UTILITY REQUIREMENT


    Electrical supply 3 Phase + Neutral + Earthing
    Electrical Load 2 Kw
    Air Consumption 0.5 CFM @ 6 kg
