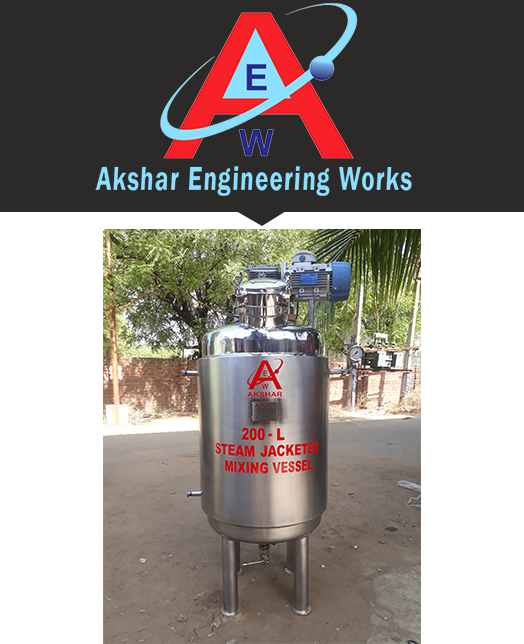

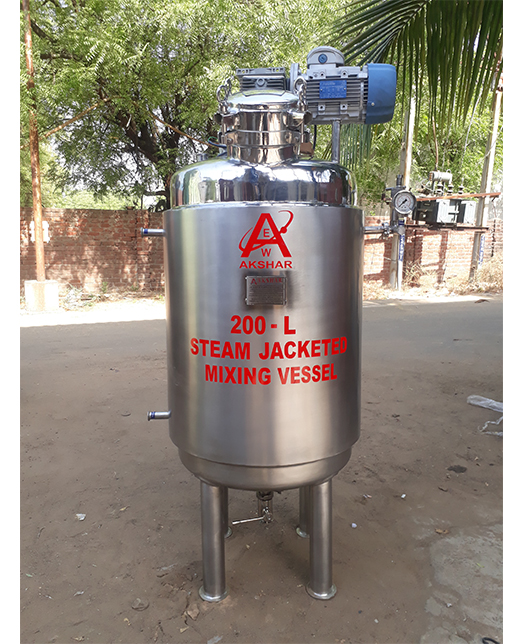

BLENDING & MIXING TANK

To meet the diversified requirements of our prestigious clients, we are engaged in offering Blending and Mixing Vessel. The offered vessel is available in a wide variety of specifications as per the exact requirements of clients. The provided vessel is manufactured as per industry standards using the best quality components and sophisticated technology under the guidance of our expert team. In addition to this, clients can avail this vessel from us in customized options and at market leading prices.

Features

  • MOC SS 316 and SS 304.
  • Electric Heater & Steam Jacketed.
  • Hassle free operation.
  • Compact design.
  • Excellent performance.

    • The following type of Blending & Mixing Vessels / Tanks are manufactured:

    • Blending and Mixing Tanks are available having the Volumetric Capacity of 100 Liters to 5,000 Liters.
    • These Tanks can be single walled or with Dimple Jacket & with or without Insulation followed by Outer shell of SS 304 or MS depending Upon the specific requirement.
    • These vessels are provided with Jet Mixers / Turbine type agitators for mixing, / High Shear Mixer / Pedal Mixer or Low shear Mixers with scrapper. One can have choice of having these vessels depending upon the requirement of various Food processing technology.
    • Even it is possible to have these Vessels with two speed agitators cum scrapper moving in opposite directions.
    • Provision can be made for two speed mixers.
    • These vessels can also be supplied with Flat / Conical / Dished end bottom and top with loose / fixed cover.
    • In case of Jacketed vessels, the shell & Bottom are provided with the dimple jacket suitable for circulation of steam / hot / cold water.
    • The dimple jacket Vessels are tested at 6 bar hence one need not use syphon for draining the liquid in the jacket.
    • These jackets are suitable to work with online supply of hot / cold water / steam up to a pressure of 4 bar.
    • However, in case above standard designs are not suitable for requirement, one can very well ask to redesign the Vessels to suit individual requirement.
