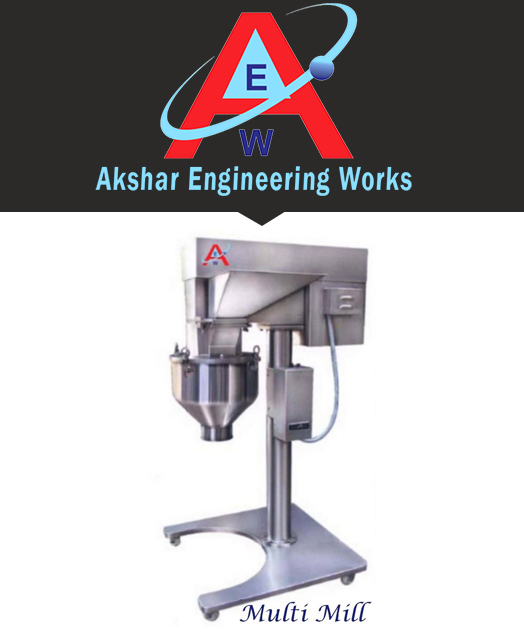

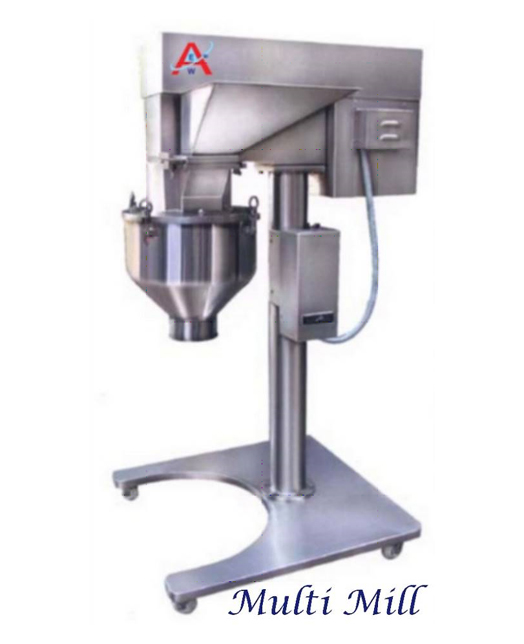

MULTI MILL

“AKSHAR” Multi Mill a self - contained portable unit useful for high-speed granulation, pulversing, mixing, shredding and chopping of wide range of wet and dry materials with special attachments called beater which have Knife/Impact blades and Scrapper blades (Standard) to get the required size reduction.

Desired output of product depends on wide range of model selection which varies through direct driven, belt driven, perforated screen size & motor HP. Multi Mill is widely used in pharmaceutical industries, food industries, R&D purpose, pharmacy colleges for education purposes, etc.

SALIENT FEATURES

  • Multiple speed drive of beaters can be adjusted through Variable Frequency Drive (VFD).
  • Easy Dismantling & Cleaning.
  • Effortless Portability with the help of Castor Wheels.
  • Direction of blade rotation can be changed.
  • Multiple combination of Perforated Screen, Speeds, Number of blades.
  • TECHNICAL SPECIFICATIONS (BELT DRIVEN)

    • 3 HP/1450 RPM/ 3 Phase/ 440 V/AC
    • D.O.L. Starter provided with reversible switch.
    • Motor RPM: 750/1400/2200/2800
    • 12 No, of blades with knife & impact edges and 2 no. of scraper blades.
    • Output depending upon the feed product and output required.
    • Foundation is not required as Castor wheel is mounted with the base.

    TECHNICAL SPECIFICATIONS (DIRECT DRIVEN)

    • 3 HP/ 2850 RPM/ 3 Phase/ 440 V/AC
    • VFD Provided for regulated RPM
    • Motor RPM: 0 to 2850
    • 12 No, of blades with knife & impact edges and 2 no. of scraper blades.
    • Output depending upon the feed product and output required.
    • Foundation is not required as Castor wheel is mounted with the base.
