LIQUID / SYRUP FILTER PRESS

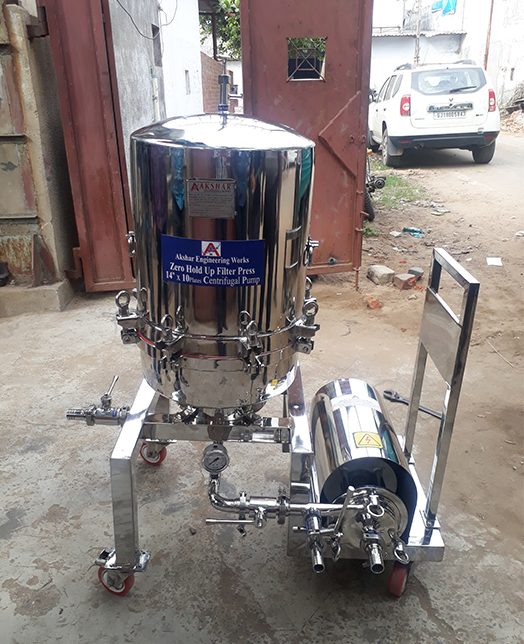

The Akshar Engineering Works – manufacturer and supplier of zero hold up filter press in India that is made up of high quality stainless steel having customized finished design. The cartridge assembly consists of plates, perforated screens, spacers and filter media stands on S.S. trolley. The whole assembly complete with attached pump and pipe lines through welding.

OPERATIONS

The zero hold up filter press having exactly the opposite direction of flow of liquid to the flow in standard filter. The unfiltered liquid is fed into central part of the machine giving high pressure from bottom inlet. The filter media filters the liquid when the whole liquid spreads out equally on each plate. Solids remain on filter media and filtrate liquid collects in the shell, which then comes out through the outlet. After the completing of filtration process the cake is cleaned from filter material and can be recycled.

    • SALIENT FEATURES

    • Available in S. S. 316 L and S. S. 304 construction in various configurations.
    • Single pass operation with complete recovery of solids.
    • Complete product recovery, no separate scavenging operation required.
    • Central feeding from the bottom ensures that the unfiltered liquid does not come in contact with the vessel, hence no solid remains in the vessel.
    • The filter plates are completely welded to the ring to avoid contamination
    • The interlocking cups are welded to the filter plate to make it a one piece construction, for ease in cleaning and operation.
    • The complete assembly is a closed system, thereby eliminating the danger of spillage, gas dispersion, etc.
    • Solid cake recovery possible by drying from the bottom purging valve.
    • Uniform cake distribution on all the filter plates.
    • It comes with a variety of pumps like centrifugal, lobe pump, gear pump, etc
    • All gaskets are food grade silicon as per CGMP guidelines.
    • Optionally available with steam jacket for heating during filtration
    • Complete unit can be dismantled for washing and sterilizing, thus making it suitable for pharmaceutical applications.
    • Variety of filtration media can filter aids can be used depending on application.

    Technical Specification


    Model No Dia. of Plates (inches) No. of Plates Heights of Plates (mm) Filtration Area (Sq.Mtr.) Cake Holding Capacity (rf^) Flow Rate ~ (Ltrs/Hrs.) Size of Pump Motor (hp)
    AZFP84 8 4 25 0.132 1.8 300 0.5" 1.0
    AZFP86 8 6 25 0.198 2.7 400 0.5" 1.0
    AZFP88 8 8 25 0.254 3.6 500 0.5" 1.0
    AZFP88 8 10 25 0.35 4.5 600 0.5" 1.0
    AZFP144 14 4 38 0.378 10 700 1.0" 2.0
    AZFP146 14 6 38 0.567 15 1200 1.0" 2.0
    AZFP148 14 8 38 0.756 20 1600 1.0" 2.0
    AZFP1410 14 10 38 0.924 25 2000 1.0" 2.0
    AZFP1412 14 12 38 1.156 30 2300 1.0" 2.0
    AZFP188 18 8 38/50 1.27 38/49 2500 1.5" 3.0
    AZFP1810 18 10 38/50 1.62 48/62 3200 1.5" 3.0
    AZFP1812 18 12 38/50 1.842 57/74 4000 1.5" 3.0
    AZFP1815 18 15 25 2.27 48 5000 1.5" 3.0
    AZFP1818 18 18 25 2.72 57 5500 1.5" 3.0
    AZFP1818 18 18 38/50 2.77 86/110 5500 1.5" 3.0
    AZFP1823 18 23 25 3.45 73.6 6800 1.5" 3.0
    AZFP2412 24 12 38/50 3.37 102/132 6700 2.0" 5.0
    AZFP2415 24 15 38/50 4.21 127.5/165 7800 2.0" 5.0
    AZFP2418 24 18 38/50 5.04 153/198 10000 2.0" 5.0
    AZFP2423 24 23 38/50 6.34 195/250 12500 2.0" 5.0
    AZFP337 33 7 38/50 4.2 112/147 8000 2.5" 7.5
    AZFP3310 33 10 38/50 5.6 160/210 11000 2.5" 7.5
    AZFP3314 33 14 38/50 7.5 224/294 15 000 2.5" 7.5
    AZFP3320 33 20 38/50 11.5 320/400 25000 2.5" 7.5
    AZFP3323 33 23 38/50 14.0 368/480 25000 2.5" 7.5
    AZFP3330 33 30 38/50 17.98 480/630 30000 2.5/3" 7.5/10
    AZFP3340 33 40 38/50 21.60 640/840 35000 2.5/3" 7.5/10
