SPARKLER FILTER PRESS

The horizontal sparkler type filter is the most versatile filtration system for solid - liquid separation. It can also be used apart from filtration, with the help of filter aids for giving a sparkling effect to the liquids filtered. The filters are most suited for the filtration of products for the pharmaceutical, chemical, distillery, beverage, ink, oil and other allied industries. It is available in different output capacities with a variety of pumps to suit individual requirements.

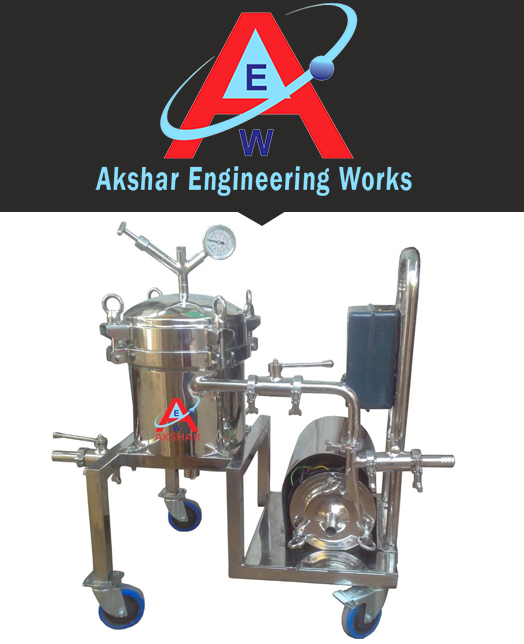

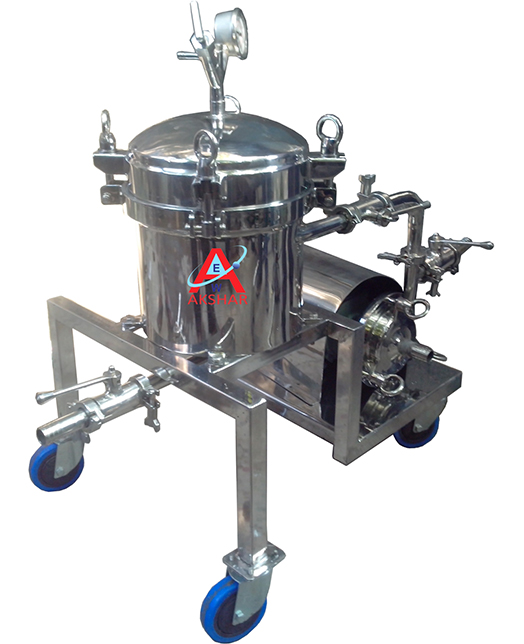

“AKSHAR” offer a wide range of Standard filter press in India consisting of stainless steel shells with bolted top cover. This feature helps the filter press to create and maintain its pressure. Several disc type filter plates are arranged horizontally in the filter cartridge assembly with perforated supporting screens, filter media and interlocking cups. The whole assembly shell stands on S.S. trolley and structured with pump and piping connection.

OPERATIONS

The main operation of horizontal standard filter press is to filter the impure liquid. Arriving on top of each horizontal plate with increasing pressure, the filter media holds back the impurities and allows the filter to pass through centre by interlocking cups, which takes the filtrate to the outlet of the filter. The cake formed between the horizontal plates can also be obtained. The function of filtration process becomes slow when the liquid reached its holding capacity into the cake.

    • SALIENT FEATURES

    • Available in S. S. 316 L and S. S. 304 construction in various configurations.
    • Single pass operation with complete recovery of solids.
    • Complete product recovery, no separate scavenging operation required.
    • Central feeding from the bottom ensures that the unfiltered liquid does not come in contact with the vessel, hence no solid remains in the vessel.
    • The filter plates are completely welded to the ring to avoid contamination.
    • The interlocking cups are welded to the filter plate to make it a one piece construction, for ease in cleaning and operation.
    • The complete assembly is a closed system, thereby eliminating the danger of spillage, gas dispersion, etc.
    • Solid cake recovery possible by drying from the bottom purging valve.
    • Uniform cake distribution on all the filter plates.
    • It comes with a variety of pumps like centrifugal, lobe pump, gear pump, etc
    • All gaskets are food grade silicon as per CGMP guidelines.
    • Optionally available with steam jacket for heating during filtration
    • Complete unit can be dismantled for washing and sterilizing, thus making it suitable for pharmaceutical applications.
    • Variety of filtration media can filter aids can be used depending on application.

    Technical Specification


    Model No Dia. of Plates (inches) No. of Plates Heights of Plates (mm) Filtration Area (Sq.Mtr.) Cake Holding Capacity (rf^) Flow Rate ~ (Ltrs/Hrs.) Size of Pump Motor (hp)
    ASFP84 8 4 25 0.132 1.8 300 0.5" 1.0
    ASFP86 8 6 25 0.198 2.7 400 0.5" 1.0
    ASFP88 8 8 25 0.254 3.6 500 0.5" 1.0
    ASFP88 8 10 25 0.35 4.5 600 0.5" 1.0
    ASFP144 14 4 38 0.378 10 700 1.0" 2.0
    ASFP146 14 6 38 0.567 15 1200 1.0" 2.0
    ASFP148 14 8 38 0.756 20 1600 1.0" 2.0
    ASFP1410 14 10 38 0.924 25 2000 1.0" 2.0
    ASFP1412 14 12 38 1.156 30 2300 1.0" 2.0
    ASFP188 18 8 38/50 1.27 38/49 2500 1.5" 3.0
    ASFP1810 18 10 38/50 1.62 48/62 3200 1.5" 3.0
    ASFP1812 18 12 38/50 1.842 57/74 4000 1.5" 3.0
    ASFP1815 18 15 25 2.27 48 5000 1.5" 3.0
    ASFP1818 18 18 25 2.72 57 5500 1.5" 3.0
    ASFP1818 18 18 38/50 2.77 86/110 5500 1.5" 3.0
    ASFP1823 18 23 25 3.45 73.6 6800 1.5" 3.0
    ASFP2412 24 12 38/50 3.37 102/132 6700 2.0" 5.0
    ASFP2415 24 15 38/50 4.21 127.5/165 7800 2.0" 5.0
    ASFP2418 24 18 38/50 5.04 153/198 10000 2.0" 5.0
    ASFP2423 24 23 38/50 6.34 195/250 12500 2.0" 5.0
    ASFP337 33 7 38/50 4.2 112/147 8000 2.5" 7.5
    ASFP3310 33 10 38/50 5.6 160/210 11000 2.5" 7.5
    ASFP3314 33 14 38/50 7.5 224/294 15 000 2.5" 7.5
    ASFP3320 33 20 38/50 11.5 320/400 25000 2.5" 7.5
    ASFP3323 33 23 38/50 14.0 368/480 25000 2.5" 7.5
    ASFP3330 33 30 38/50 17.98 480/630 30000 2.5/3" 7.5/10
    ASFP3340 33 40 38/50 21.60 640/840 35000 2.5/3" 7.5/10
