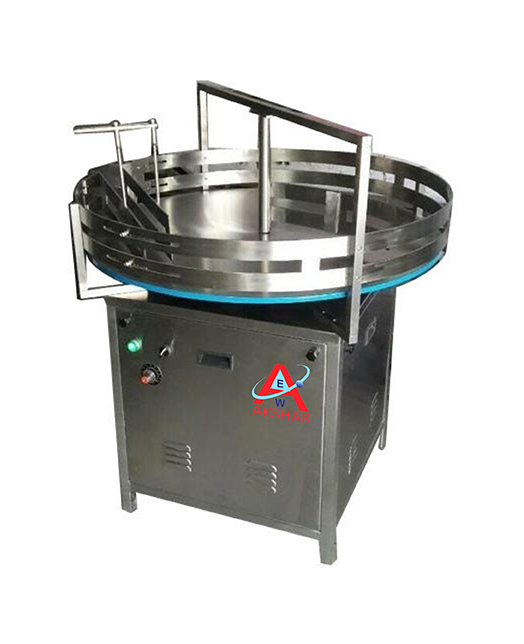

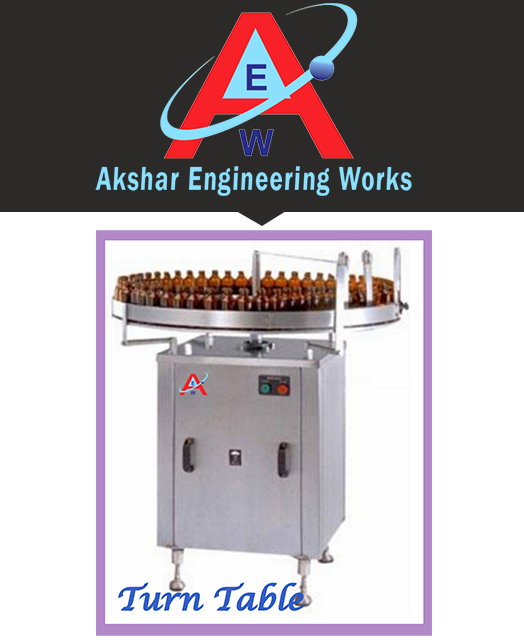

SS TURN TABLE

“AKSHAR” Turn Table is built on MS Square frame with external SS 304 cladding. Solid guide rail & reduction gear box for jerk less & noiseless performance. Turn Table is useful to load the bottles or to create buffer during line operation or to receive bottles at the end. It ensures total synchronization, uniform flow of containers and to divert a line at 90 degree to suit different layouts in automatic filling lines.

Containers are loaded in turn table manually or received from previous machine through conveyor. Containers will rotate on disk of turn table and exit through outlet. During rotations, containers will be guided by an SS strip towards outlet path.

SALIENT FEATURES

  • Rigid MS structure with elegantly matt finished SS cladding.
  • Speed control through AC VFD to match with desired line speed
  • Special self-aligning bearings ensure smooth and trouble-free operation.
  • Suitable for different sizes of container.
  • Top plate made of aluminum.

    • TECHNICAL SPECIFICATIONS


    Model ATT-30” ATT-36” ATT-42”
    Direction Clockwise / Anti clockwise as per requirement
    RPM of Disk Through ACVFD
    Electric Specification 0.5 HP / 220 V / 50 Hz
    Height of Table 860 ± 50 mm

    INPUT SPECIFICATIONS


    Container Size Round Diameter: ∅ 22 mm to ∅ 60 mm
    Respective Height : 58 mm to 120 mm

    UTILITY REQUIREMENT


    Electrical supply Single Phase + Neutral + Earthing
    Electrical Load 0.5 kW
