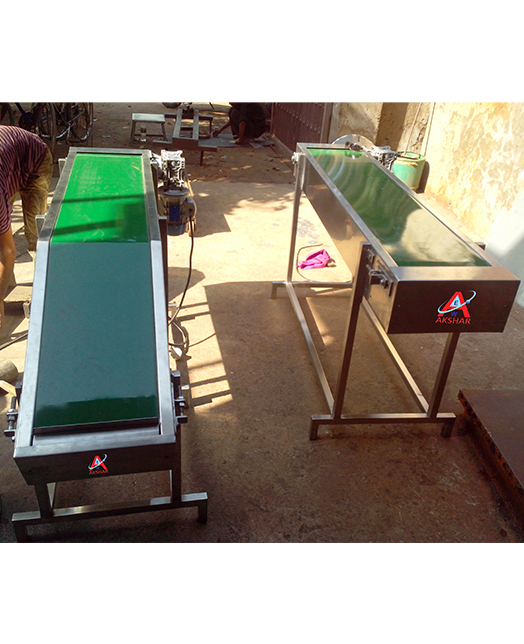

“AKSHAR” Packing conveyor belt has a stainless steel Tabletop with a moving Endless sandwich belt in the center. The tabletop is fixed to the same structure made out of SS square pipe & supported on adjustable bolts. Tabletop is of 12 inches working space on both sides of the conveyor belt for final visual inspection & manual carton operations.

The conveyor belt brings the container or products from an upstream machine. Operators sitting on both sides of the belt, in turn, pick up the bottles/products for final visual check and remaining secondary packaging operations for carton.


  • Structure is made of S.S. 304, 30 mm sq. Pipe, 16 SWG with matt finish.
  • Belt-alignment system for long life & aligned running of belt.
  • Direct gear drive.
  • Length can be made as per customer’s requirement
  • Adjustable height of conveyor belt, to align with other machine of the line.
  • Rigid vibration free construction for trouble free performance.

    Model NPCB
    Direction of Movement left to right
    Speed 7.5 Mtr. / Min up to 12 Feet Long
    12 Mtr. / Min from 13 Feet to 24 Feet Long
    Electric Specification 0.5 HP / 220 V / 50 Hz up to 12 Feet length
    Height of Conveyor 860 ± 50 mm
    Belt width 9" or 12" as per requirement
    Belt Detail PVC, endless 2 ply sandwich, 2 mm thickness


    Electrical supply Single Phase + Neutral + Earthing
    Electrical Load 0.5 kW
