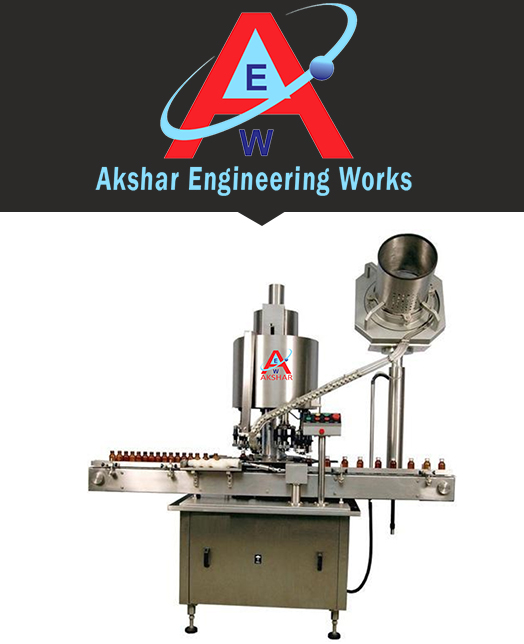

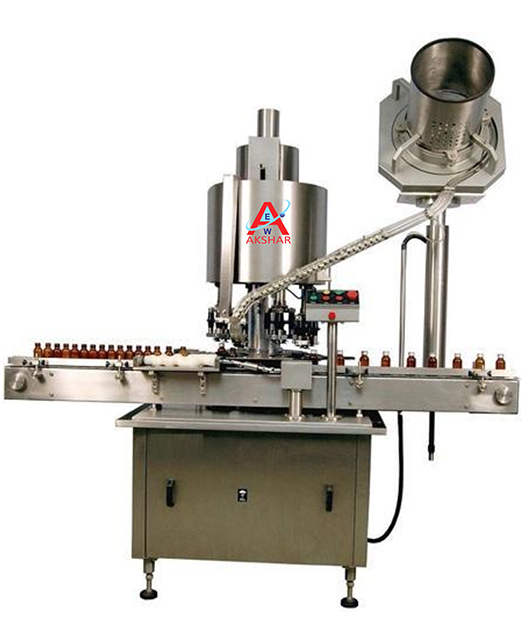

AUTOMATIC MULTI HEAD ROPP CAPPING MACHINE

“AKSHAR” Automatic ROPP Cap Sealing Machine is resourceful and self-sufficient on stainless steel legs that have a height adjustable system. The product is made on sturdy welded MS frame that closes entirely in stainless steel and doors that ensure the operation of the mechanism.

The feed container that is in motion on the conveyor belt is placed in the infeed star wheel with the help of an in-feed worm. The star wheel gets the container under the sealing head where the bottle is inserted with a cap from the delivery chute of the cap filling bowl, which has the body and neck of the container placed under the rotating head. The operation of threading & sealing is done perfectly by the sealing head.

SALIENT FEATURES

  • No container no cap arrangement.
  • Rigid M.S. structure with elegantly matt finished S.S. cladding.
  • Single motor synchronizes conveyor, star wheel, & platform turret.
  • ACVFD for speed control.
  • Adjustable height of conveyor belt to align with another machine of the line
  • Sealing pressure can be varied to suit different gauges and size of caps.
  • Specially designed hopper is provided to increase storage capacity of bowl
  • Low noise level, low power consumptions.
  • Self-lubricating UHMW-PE guide profile for S.S. slat chain provides low friction & allows smooth and noiseless conveying.
  • Universal coupling for quick and easy setting of In-feed worm
  • Adjustable bottle height gauge for easy and quick setting.
  • Acrylic enclosure in SS frame. (optional).
  • No cap − machine stop arrangement. (optional)
  • Motorized height adjustment. (optional)
  • TECHNICAL SPECIFICATIONS


    Model NASCM - 100 NASCM - 150 NASCM - 200 NASCM - 250
    No. of sealing head 4 6 8 12
    Output / Hour * 3600 to 5000 3600 to 6500 4000 to 8000 5000 to 10000
    Direction of Movement Left to Right
    Electric Specifications Main Motor 1.5 HP / 415 Volts / 50 Hz 2 HP / 415 Volts / 50 Hz
    Cap Feeding Bowl 300 Watt
    Height of Conveyor 860 ± 50 mm
    Change parts required (A) Container: Star Wheel, Back Guide, Feed Worm
    (B) Cap: Chuck, Delivery Chute, bowl & Cap Star wheel

    INPUT SPECIFICATIONS


    Screw Cap Diameter ∅ 22 mm to ∅ 28 mm
    Height 20 mm to 25 mm
    Container Size Round Shape Diameter: ∅ 28 mm to ∅ 60 mm
    Respective Height: 60 mm to 120 mm
    Flat / Square Length: 30 mm to 70 mm
    Width: 20 mm to 50 mm
    Height: 58 mm to 120 mm

    UTILITY REQUIREMENT


    Electrical supply 3 Phase + Neutral + Earthing
    Electrical Load 1.5 Kw
    Air Consumption 0.5 CFM @ 6 kg
